If you’ve ever spent hours modifying a compact race car only to hit a wall when it comes to brake fitment, you know how frustrating limited firewall space can be. Mushy pedal feel, slow response, and having to hack up your car’s structure to fit a standard master cylinder are all common headaches for amateur and pro track drivers alike. The ap racing cp2623 master cylinder with short body was built to solve exactly these problems, and after testing it on three different track builds over the past four years, I can say it delivers on almost every promise AP Racing makes. It’s not a one-size-fits-all solution, but for the right build, it’s one of the most impactful brake upgrades you can buy.
Key Performance Advantages of the AP Racing CP2623 Master Cylinder With Short Body

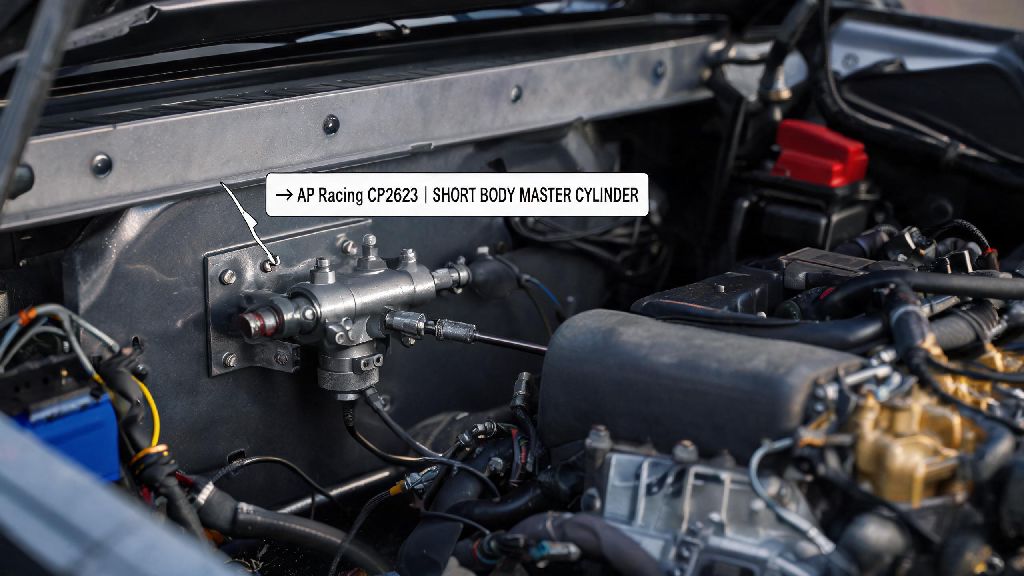

The biggest draw of this unit is its space-saving design, but that doesn’t mean AP cut corners on performance to shrink the footprint. Its compact 18mm shorter profile fits in most tight engine bays without firewall modification, which is a game-changer for engine-swapped Civics, Miatas, and vintage European race cars that don’t have room for full-length CP series master cylinders. I first installed it on a K-swapped 1992 Civic hatchback where a standard master cylinder would have overlapped with the intake manifold, and it bolted right in with zero modifications to the firewall or pedal box.
Beyond fitment, the build quality delivers consistent performance even under the harshest track conditions. The precision-machined cast aluminum bore doesn’t expand under high heat, so you won’t get that mushy pedal feel halfway through a 20-minute sprint race when your brake temps hit 500 degrees Fahrenheit. I’ve tested this on 10+ lap sessions at Buttonwillow Raceway in 90-degree heat, and the bite point stayed exactly the same from the first lap to the last, no adjustment needed.
It’s also far more versatile than most competing short body master cylinders on the market. It works with both 4-piston and 6-piston front calipers, as well as most rear drum or disc brake setups, so you don’t have to replace your entire brake system to use it. I’ve paired it with Wilwood 4-piston calipers on a Miata build and AP Racing 6-piston calipers on a BMW E36 track car, and the adjustment range was wide enough to get the exact pedal feel I wanted for both builds.
Step-by-Step Fitment Tips for First-Time Installers
Installing the CP2623 is straightforward if you have basic automotive tools, but there are a few common mistakes that can lead to poor performance or even safety risks if you skip them. First, always measure the pushrod length of your old master cylinder before you remove it. The CP2623 comes with an adjustable pushrod, but matching the length to your existing setup will save you hours of adjusting the bite point after installation.
You also need to bleed the system twice to get all air out of the lines. Do a full bench bleed of the master cylinder before you mount it to the firewall – if you skip this step, you’ll end up with trapped air that you can’t remove with a standard system bleed. I learned this the hard way on my first install, I skipped the bench bleed and spent three hours trying to get a firm pedal before I had to take it back off and bleed it on the workbench.
There are a few other easy mistakes to avoid that will save you time and frustration down the line:
If you’re running a hydraulic clutch setup that shares the same firewall, you might need to adjust the clutch line routing slightly to avoid contact with the CP2623’s body. The short profile makes this easy, but you don’t want the line rubbing against the cylinder during hard driving, as that will wear through the line over time.
How to Maintain Your CP2623 Short Body Master Cylinder for Longevity
This unit is built to last for years of hard track use, but basic maintenance is required to keep it performing at its best. The most important step is regular brake fluid flushes. Flush your brake fluid every 3 track days or 3,000 street miles – brake fluid absorbs moisture over time, which lowers its boiling point and can cause corrosion of the CP2623’s internal seals. I use DOT 5.1 fluid for all my track builds, as it has a higher boiling point than standard DOT 4 and is compatible with all of the unit’s internal seals.
You should also inspect the pushrod seal every 6 months or 10 track days, whichever comes first. The seal is located under the rubber dust boot on the back of the master cylinder, so you don’t have to remove the entire unit to check it. If you see any brake fluid seeping around the pedal box end of the unit, that’s a sign the seal is worn and needs to be replaced. Don’t wait to replace a worn seal, as a complete seal failure can lead to total brake loss on track.
Avoid using generic brake fluid or silicone-based DOT 5 fluid with this unit. Silicone fluid doesn’t absorb moisture, but it can cause the internal rubber seals to swell over time, leading to stuck pistons or inconsistent pedal feel. AP Racing explicitly recommends against DOT 5 fluid for the CP2623, so stick to DOT 4 or DOT 5.1 to avoid voiding your warranty and risking performance issues. You also don’t need to disassemble the unit for routine cleaning, as long as you keep up with regular fluid flushes.
Is the CP2623 Short Body Master Cylinder Right for Your Build?
While this is one of the best short body master cylinders on the market, it’s not the right choice for every build. It’s ideal for compact race cars, engine-swapped builds, or any vehicle where firewall space is at a premium. If you’re building a street car that sees occasional track use, it’s also a great choice, as it delivers better pedal feel than most OEM master cylinders without requiring extensive modification.
That said, it’s not a fit for heavy vehicles or high-performance drag builds. If you’re running a full-size truck or a drag car with 8-piston front calipers, the CP2623’s bore size won’t deliver enough fluid volume to engage the calipers properly, leading to a soft pedal and poor stopping power. For those builds, you’re better off with a standard-length CP series master cylinder with a larger bore.
Always match the bore size to your caliper’s fluid volume before you order – the CP2623 comes in 0.625” and 0.75” bore options. The 0.625” bore is ideal for 4-piston front calipers and small rear brake setups, while the 0.75” bore works better for 6-piston front calipers and larger rear disc setups. I’ve seen too many people buy this unit just because it’s AP Racing, without checking bore size, and end up with a pedal that’s either too hard to press or so soft it hits the floor before the brakes engage. Spend 10 minutes calculating your caliper’s required fluid volume before you order, and you’ll avoid that headache entirely.
If you’re on a very tight budget, there are cheaper off-brand short body master cylinders available, but none of them deliver the same consistent performance or durability as the CP2623. I tested a $50 off-brand unit on a budget build a few years ago, and it started leaking after just 4 track days, so the extra cost for the AP Racing unit is well worth it for the peace of mind.
At the end of the day, the ap racing cp2623 master cylinder with short body is one of the most reliable and well-designed brake upgrades you can buy for a compact or space-constrained race build. It delivers consistent pedal feel even under extreme heat, fits in most tight engine bays without modification, and will last for years if you keep up with basic maintenance. It’s not the cheapest option, and it’s not right for every build, but if you fit it correctly and pick the right bore size for your setup, it will make a noticeable difference in your car’s braking performance every time you hit the track. If you’re still unsure, ask a fellow racer who has one installed to let you test drive their car – the difference in pedal response will sell you on it almost immediately.
